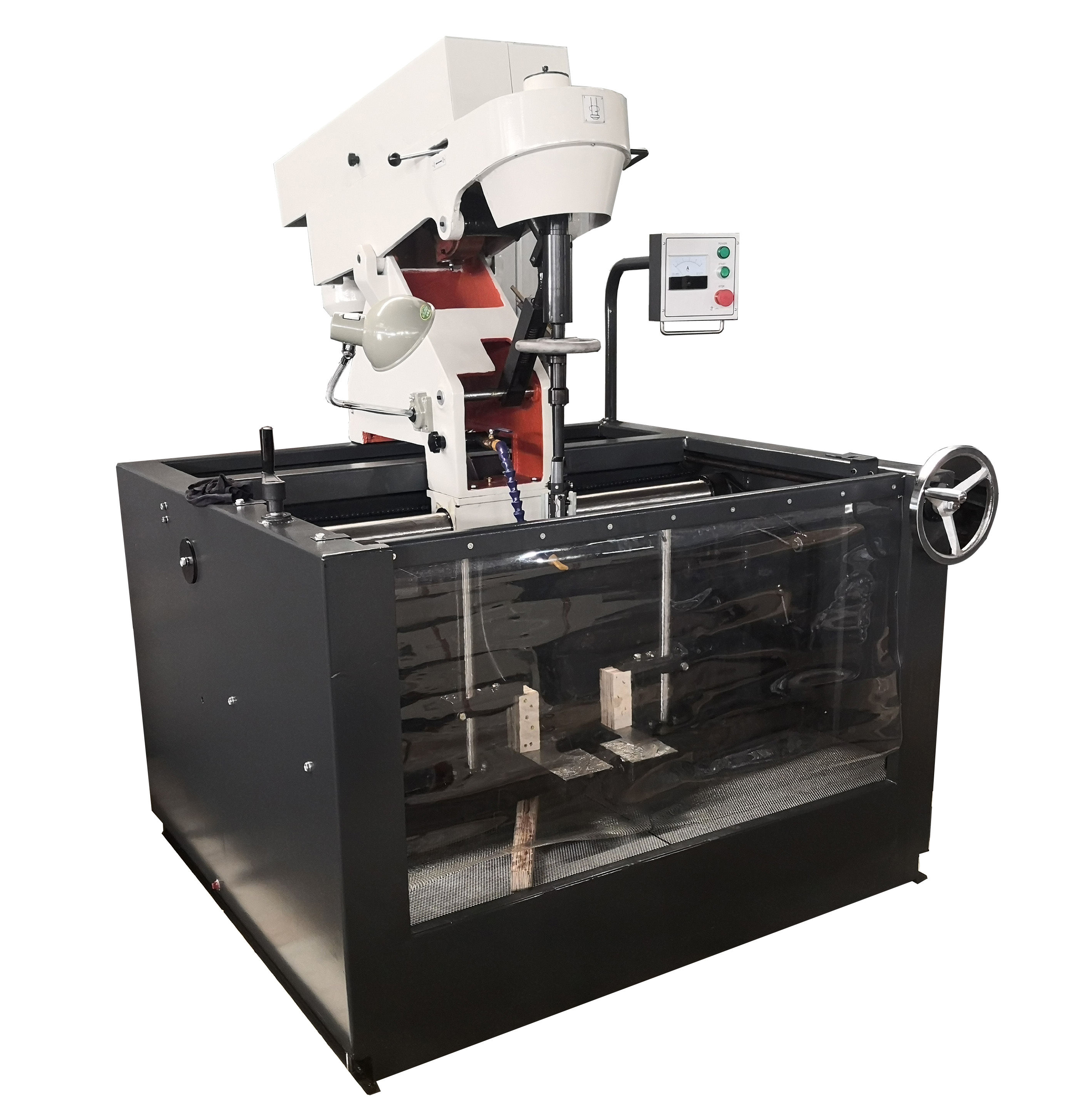

The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors and also for other machine element holes.
·The machine table can shift of the fixture change 0°, 30°and 45°.
·The machine table is easily up and down manually 0-180mm.
·Reverse precision 0-0.4mm.
·Select mesh-wire degree 0°- 90° or non-mesh-wire.
·Reciprocating speed of up and down 0-30m/min.
·The machine is reliable performance widely use honing, easy operation and high productivity.
·Good rigidity, amount of cutting.

Main specifications
Model
3MB9817
Max diameter of hole honed
Φ35-Φ170 mm
Max depth of hole honed
320 mm
Spindle speed (4 steps)
120, 160, 225, 290 mm
Stork (3 steps)
35, 44, 65 s/min
Power of main motor
1.5 Kw
Power of cooling pump motor
0.125 Kw
Machine working inside cavity dimensions (L×W)
1400×870 mm
Overall dimensions (L×W× H)
1640×1670×1920 mm
Packing dimensions (L×W×H)
1850×1850×2150 mm
N.W./G.W.
1000/1200 kg


No
Model
Range(Unit mm)
Sand Block Size
1
MFQ30
￠30-￠40
60×6×35
2
MFQ40
￠40-￠62
80×8×6
3
MFQ60
￠60-￠82
90×8×6
4
MFQ80
￠80-￠120￠
120×10×8
5
MFQ120
￠118-￠170
180×12×10
