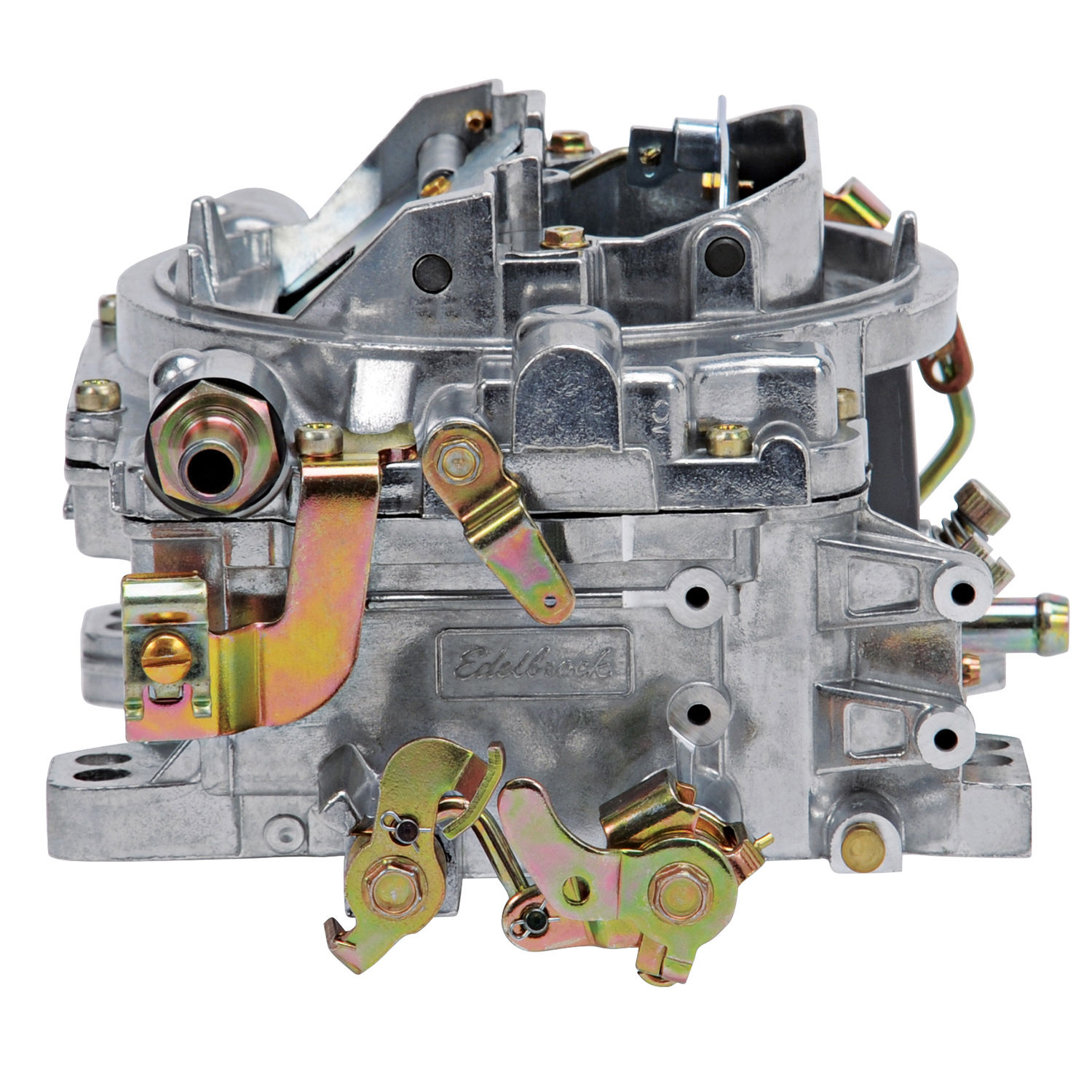

Edelbrock AVS2 Carburetor 500 CFM w/ Manual Choke, Satin Finish (Non-EGR) #1902
The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.


The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Edelbrock AVS2 Carburetor 500 CFM w/ Manual Choke, Satin Finish (Non-EGR) #1902

SKU: Edelbrock 1902
$436.95Price
Pre Order ETA: 5-7 Business Days
  • Manufacturer Edelbrock
    Application Universal
    UPC 00085347019021
    Recommended Use For Single Carb Applications
    Series AVS2
    Condition New
    Metering Rod Size .070 x .052 in
    Gasket Or Seal Included Yes
    Barrel Quantity 4 Barrel
    Flange Type Square
    Secondary Jet Diameter 0.095
    Main Venturi Diameter 1.19
    Body Height 3.25
    Bore Diameter Primary Bore 1.44; Secondary Bore 1.6875
    Spring Force 5" Hg (Orange)
    Availability Note Available to Order
    Warranty 12 Months
    Emissions Code
    Hazardous Materials Warning WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
    Installation Notes
    • Manual Choke; Manual choke AVS2 Carbs cannot be converted to electric choke; Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor; You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds
    Choke Type Manual
    Finish Satin
    Material Aluminum
    CFM Rating 500 cfm
    Primary Jet Diameter 0.095
