TX2500CNC,TX2150CNC,TX1600CNC: the control system is CNC.
TX2500PRO,TX2150PRO,TX1600PRO: the control system is PLC and HMI.

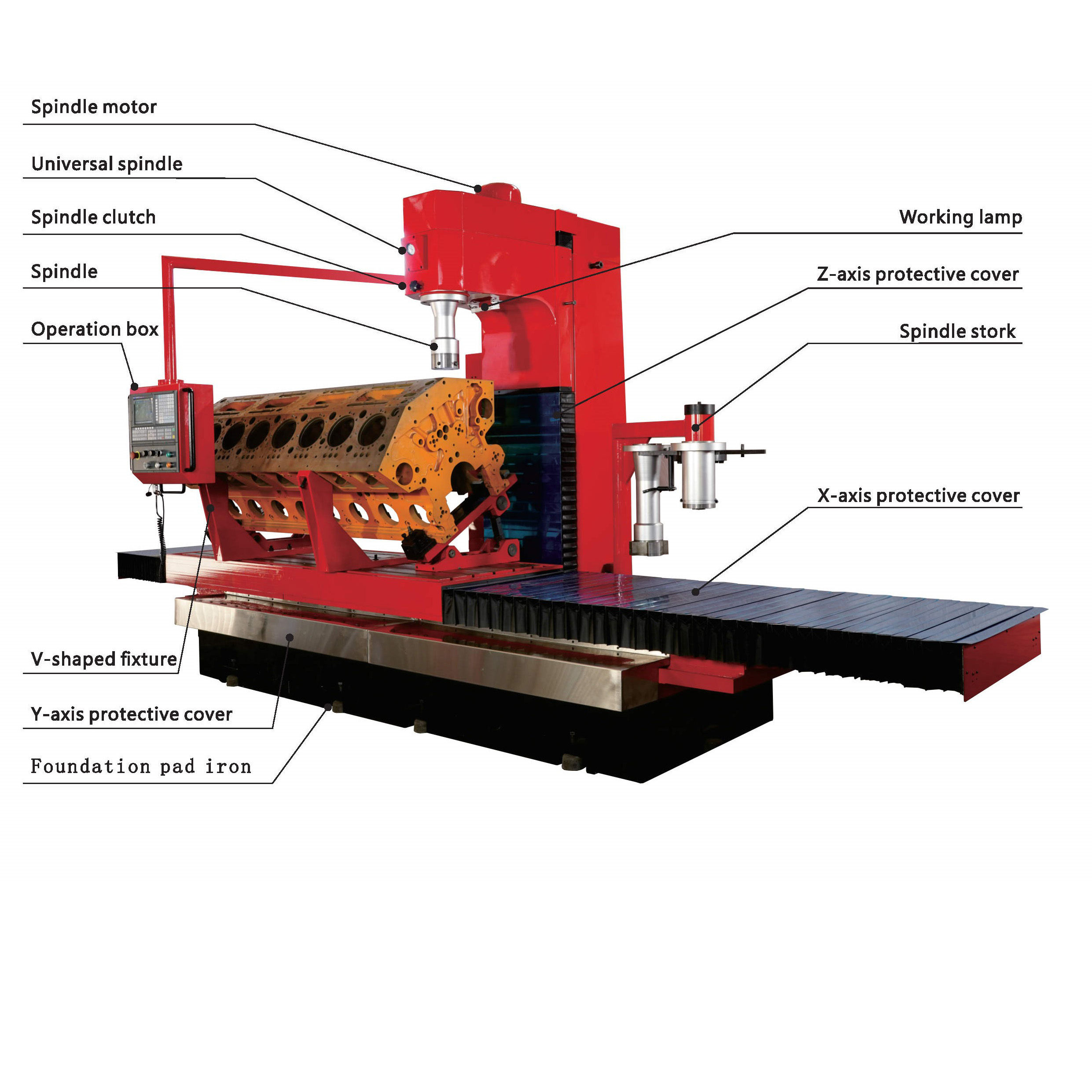

TX2500/TX2150/TX1600 is especially suitable for precision work of engine refitted: boring, milling, grinding, stepped hole machining, groove machining...… guarantee the high consistency of all processing

Unilateral Engagement of Boring is 3 mm
Precise Zero set Control of X-Axis,Y-Axis,Z-Axis
Model
TX2500CNC/PRO
TX2150CNC/PRO
TX1600CNC/PRO
Max.Drilling and reaming diameter
Φ30mm
Max.boring depth
500mm
Max.boring diameter
Φ400mm
Milling head diameter
Φ400mm
Max.Milling plane
400x2300mm
400x1950mm
400x1400mm
Spindle speed(stepless)
50~120Or/min
Spindle feed (Stepless)
0~2400mm/min
Longitudinal feed of worktable (Stepless)
0~2000mm/min
Spindle travel
Max.1000mm
Distance between spindle end and table
0~1480mm
Dis.between spin. axis and carri Verti. plane
400mm
Size of working table(including water slot)mm
900x2550
500x2150
500x1600
Amount of working table T slot
5
Longitudinal travel of working table
2550mm
2150mm
1600mm
Cross travel of working table
200mm
Spindle motor
5.5KW
Feeding motors of spindle and working table
10Nm
Overall dimension of the machine
600x220x300cm
525x170x30Ocm
385x170x300cm
Packing dimension of the machine
460x225x258cm
440x190*258cm
290x210x258cm
Net weight
8500kg
6000kg
5000kg
Gross weight
9000kg
6500kg
5500kg
Precision of boring dimension
H7
Roughness of boring surface
Ra2.5
Roughness of milling surface
Ra3.2
*All technical data and photos are subject to change due to designing without notice.
